Technical Drawing
Leather Watch Strap Orion Black / Yellow 18mm (01ON18AB03)

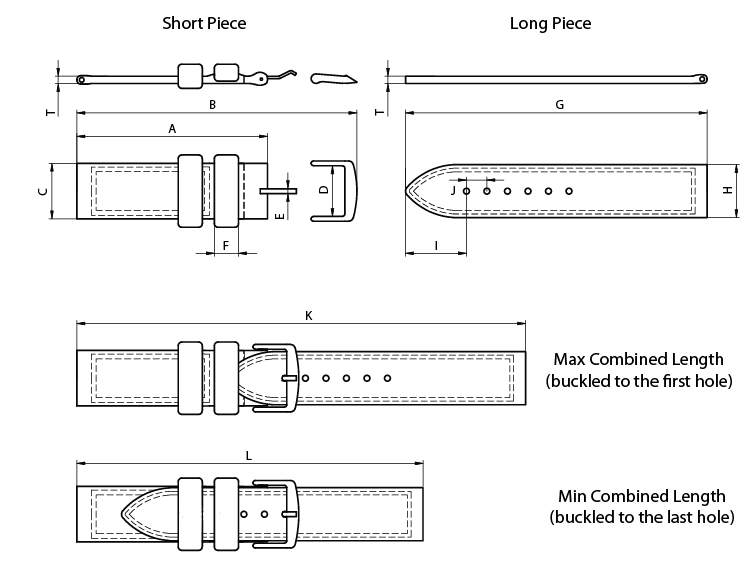

| Symbol | Description | mm (metric) | Inches (decimal) |
|---|---|---|---|

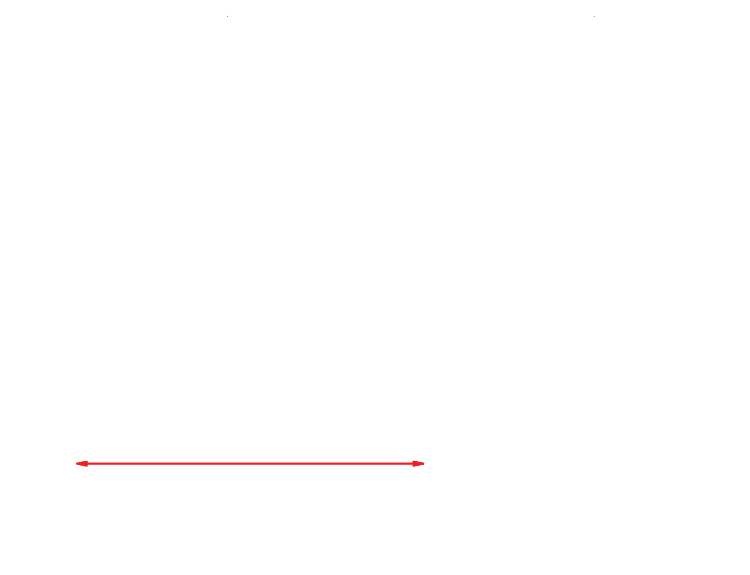

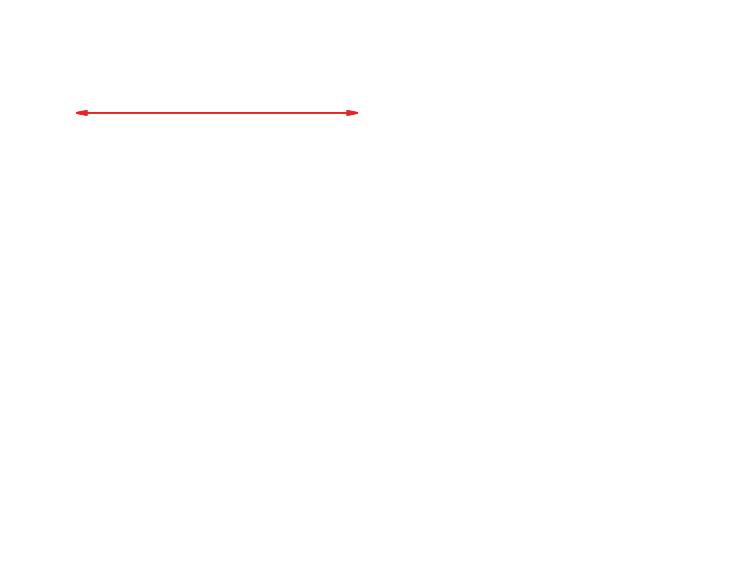

| A | Short Piece Length (excl. the buckle): | 80 | 3.15 |

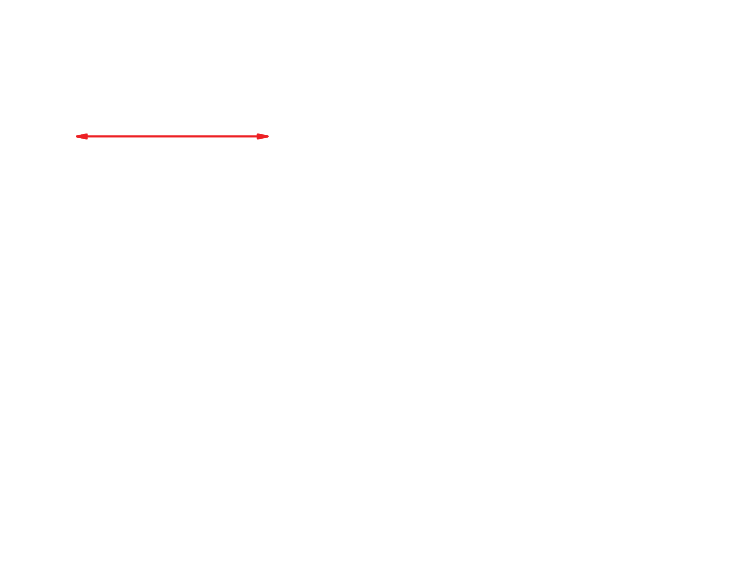

| B | Short Piece Length (incl. the buckle): | 95 | 3.74 |

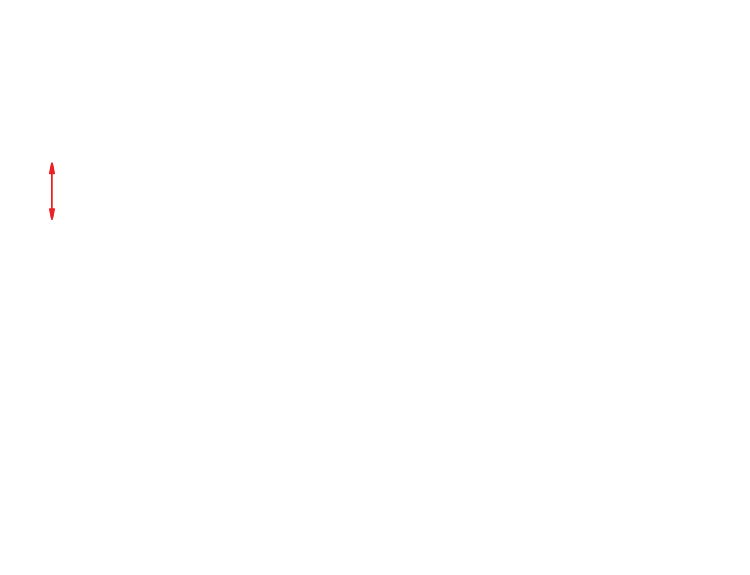

| C | Short Piece Width (watch end): | 18 | 0.71 |
| D | Buckle Size: | 18 | 0.71 |
| E | Buckle Keeper Width: | 2 | 0.08 |
| F | Strap Keeper Width: | 10 | 0.39 |
| G | Long Piece Length: | 115 | 4.53 |
| H | Long Piece Width (watch end): | 18 | 0.71 |
| I | Distance To The First Hole: | 25 | 0.98 |
| J | Distance Between Holes: | 8 | 0.31 |
| K | Max Combined Length (to the first hole): | 170 | 6.69 |
| L | Min Combined Length (to the last hole): | 130 | 5.12 |
| TSP | Thickness: | 4 | 0.16 |
| TLP | Thickness: | 4 | 0.16 |
| HNo | Number of Holes: | 6(No) | 6(No) |
